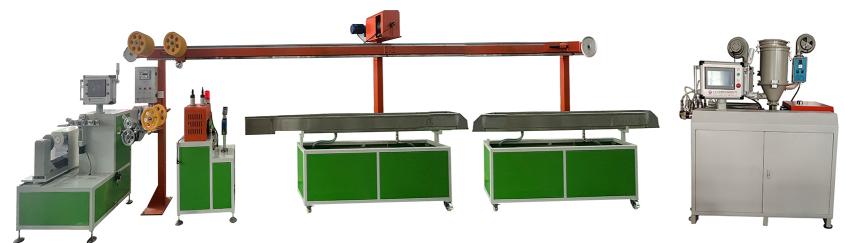

TS-30 DUAL-COLOR 3D FILAMENT EXTRUDER

TS-30 DUAL-COLOR 3D FILAMENT EXTRUDER

1.NTRODUCTION OF EQUIPMENT

The equipment is applicable for mass production of 3D filament.  We can make different configuration based on different material and special requirement.

2．Applicable material: PLA/ABS/PA/PETG/PVA/ Wood Plastic Composite and etc.

3. MAIN TECHNICAL PARAMETER

Model No.

Screw Size

Screw L/D

Motor Power

Filament size

Size tolerance

 Capacity

TS-30

30mm

28:1

5.5/30KW

1.75-3.0mm

±0.02mm

12-15kg/hr

4. PARTS  LIST

NO

Parts Description

Qty

Remarks

1

300G  Vacuum auto-loader

set


2

25KG  Hopper drier

set


3

TS-30 single screw extruder

set



A3 Steel / S304 SS Frame

4

High Precision die head

set

Two sets die lips for 1.75/3.0mm

5

3meter Warm/hot water tank

set

S304  Stainless steel

6

4meter cold water cooling tank

set

S304  Stainless steel

7

Four-wheel Traction unit

set

Anti-Friction Rubber coated

8

LST-25 single/dual-axis laser gauge

set

Measuring accuracy:0.001mm

9

8meters Horizontal tension accumulator

set

Storage length: 140m

10

Dual-shaft winding unit

set

Applicable for 1-3kg spool
